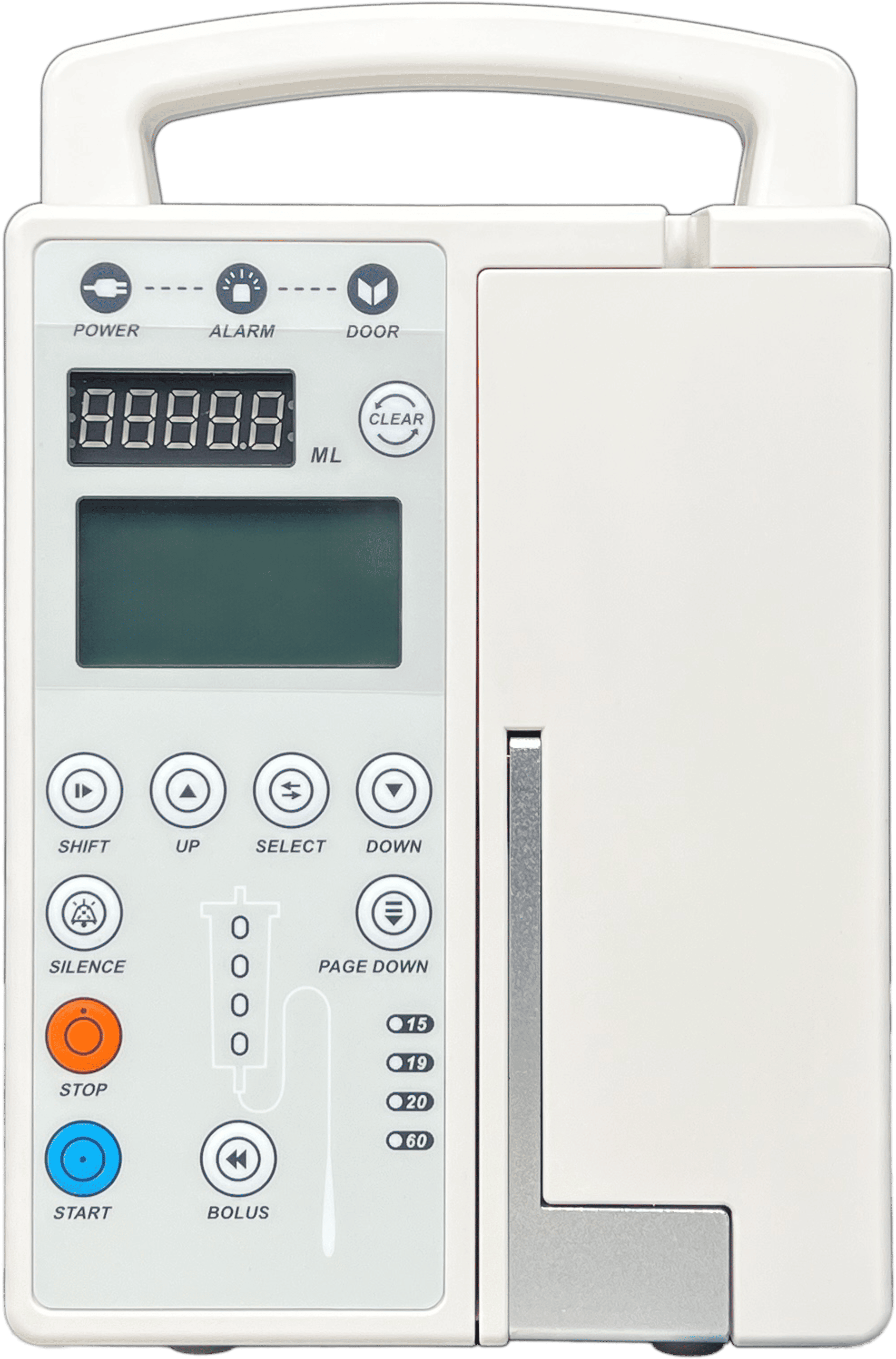

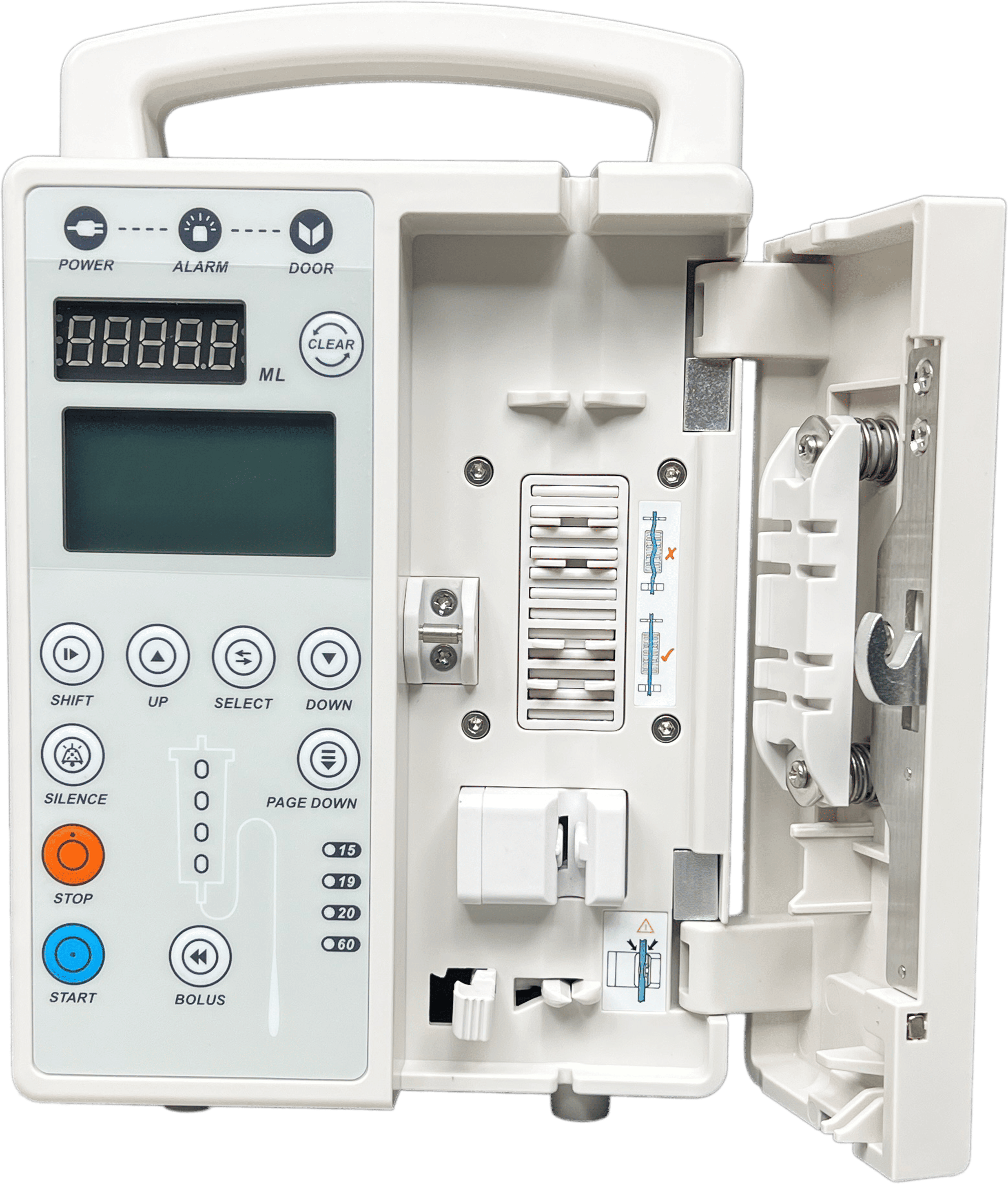

Infusion Pump 820D

Infusion Pump 820D
Infusion Pump 820D
Infusion Pump 820D
Infusion Pump 820D

An Infusion Pump is a vital medical device used for the controlled administration of fluids, medications, and nutrients into patients. These pumps are essential in critical care, anesthesia, oncology, and general medicine, providing precise flow rates and dosage accuracy. With advanced safety features like occlusion detection, air bubble alarms, and real-time monitoring, infusion pumps ensure safe and uninterrupted delivery. The pumps offer versatility, supporting various syringe sizes and infusion modes. Their compact, user-friendly design makes them ideal for healthcare settings. Infusion pumps optimize patient care by enhancing accuracy, reducing medication errors, and improving overall treatment efficiency.

Features:

  • HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
  • Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting, etc., which gain patents;
  • Compatible with any brands of infusion sets after correct calibration;
  • Preset solution volume to greatly reduce the workload of nurses;
  • Work mode: ml/h and drop/min can switch freely;
  • Three levels of occlusion: high, middle, and low;
  • Purge function;
  • KVO (keep-vein-open) automatically opens as the infusion is completed, KVO rate is 1-5ml/h(1ml/h step);
  • Power Source: AC100—240V, 50/60Hz; Internal Battery;
  • Automatically record the settings of the last infusion.
  • Precise Flow Control: Adjustable infusion rates ensure that fluids and medications are delivered at the exact rate for patient safety and treatment.
  • Multiple Syringe Compatibility: Supports various syringe sizes, providing flexibility for different treatments and medical procedures in diverse clinical environments.
  • Air Bubble Detection: Automatically identifies air bubbles, preventing them from entering the patient’s system and causing potential harm or complications.
  • Occlusion Detection: Detects blockages or resistance in the infusion line, ensuring smooth fluid delivery and preventing therapy interruptions or delays.
  • Compact and Portable: Lightweight and space-efficient, infusion pumps are easy to transport, making them ideal for bedside and mobile applications.
  • Battery Backup: Equipped with rechargeable batteries that allow continued operation during power outages, ensuring uninterrupted medication and fluid delivery.
  • Real-Time Monitoring: Continuously tracks infusion rates, volumes, and remaining medication, providing accurate data for healthcare providers to optimize treatment.
  • Audible & Visual Alarms: Multi-sensory alarms alert caregivers to any infusion issues, such as air bubbles, occlusions, or syringe malfunctions, prompting quick intervention.
  • User-Friendly Interface: Intuitive display and controls simplify pump operation, making it easier for healthcare professionals to adjust settings and monitor infusion status.
  • Enhanced Safety Features: Includes anti-bolus protection, syringe error detection, and other safety mechanisms to minimize risks associated with medication delivery.
Rate1ml/h ~ 1,200ml/h
Flow Rate AccuracyWithin ±5% (after correct calibration)
Mechanical precisionWithin ±2%
Purge Rate100ml/h ~ 1,000ml/h (100 ml/h step)
Infusion Volume1ml ~ 9999ml
Total Infusion Volume0.1ml ~ 9999.9ml
KVO rate1ml/h ~ 5 ml/h (1ml/h step)
OcclusionHigh: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 500mmHg ±100mmHg(66.7kPa±13.3kPa
Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa )
Unique audible and visible alarmHuman voice alarm for End of injection, occlusion, door open, bubbles in the tube, wrong setting, low battery, AC power pulled out etc.
Power SourceAC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
Bubble detectorUltrasonic wave detector; detection sensitivity ≥25μL
FuseF1AL/250V, 2 pc inside
Power Consumption18VA
Operating ConditionAmbient temperature: +5℃ ~ +40℃;
Relative humidity: 20 ~ 90%
Atmospheric pressure: 86.0kpa ~ 106.0kpa
Transport & Storage ConditionAmbient temperature:-30℃ ~ +55℃
Relative humidity: ≤95%
Equipment ClassificationClass II, internal power supply, Type CF
IP ClassificationIPX4
Dimension140mm (L) ×157mm(W) ×220mm(H)
Weight1.8kg (net weight)
